Project Description

Details

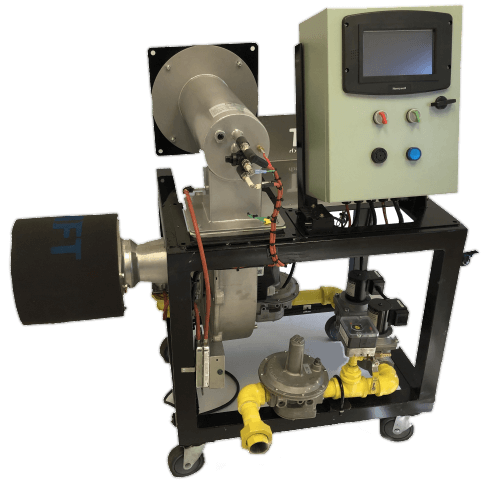

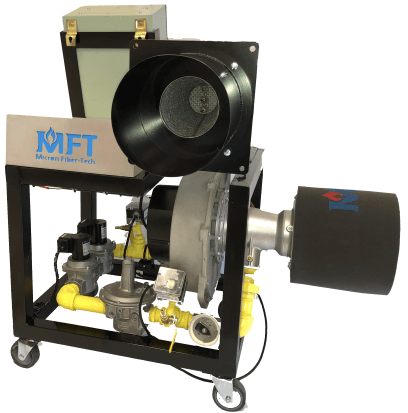

  • Ultra Low NOx In-Ward-Fired-Cone (IWFC) Burner System
  • Uses MFT’s proprietary FECRAL Metal Fiber Mesh Firing Cone
  • 99% Efficient Direct-Contact Water Heating
  • Less Than 9 ppm NOx & Near-Zero CO Emissions
  • Up to 20:1 Turndown
  • Compact Flame to Accomodate Small Chambers
  • Precise Fuel Control Pipe Trains

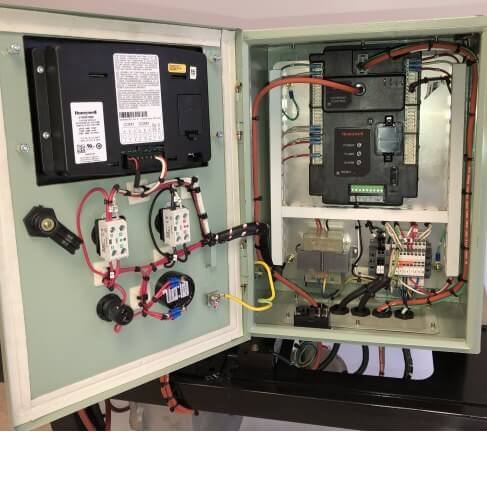

  • UL Listed Flame Control Panels
  • Honeywell or Siemens Control Options
  • Custom Engineered Solutions
Information & Pricing
Rated capacity based upon zero backpressure applications. Capacity will vary with positive or negative chamber pressures.
Model Fire Diameter Capacity Model Fire Diameter Capacity
IWFC 2.5 2.5″ (64mm) 250 MBH (73 KW) IWFC 10 10″ (254mm) 5.0 MMBH (1465 KW)
IWFC 3 3.0″ (76mm) 300k MBH (88 KW) IWFC 10.8 10.8″ (274mm) 6.5 MMBH (1905 KW)
IWFC 4 4.0″ (102mm) 700 MBH (205 KW) IWFC 12.8 12.8″ (325mm) 8.0 MMBH (2345 KW)
IWFC 5 5.0″ (127mm) 1.2 MMBH (352 KW) IWFC 12.8 12.8″ (325mm) 10.0 MMBH (2931 KW)
IWFC 5 5.0″ (127mm) 1.6 MMBH (469 KW) IWFC 15.3 15.3″ (389mm) 12.5 MMBH (3664 KW)
IWFC 6 6.0″ (152mm) 2.2 MMBH (645 KW) IWFC 18 18.0″ (457mm) 14 MMBH (4103 KW)
IWFC 6.6 6.6″ (168mm) 2.5 MMBH (733 KW) IWFC 18 18.0″ (457mm) 15 MMBH (4396 KW)
IWFC 8 8.0″ (203mm) 3.5 MMBH (1026 KW) IWFC 20 20.0″ (508mm) 16.5 MMBH (4836 KW)
IWFC 8.6 8.6″ (218mm) 4.0 MMBH (1172 KW) IWFC 26 26.0″ (660mm) 25 MMBH (7327 KW)
IWFC 10 10.0″ (254mm) 4.6 MMBH (1348 KW) IWFC 30 30.0″ (762mm) 30 MMBH (8792 KW)
